| Frequency | 13.56MHz |
| Protocol | ISO14443A |

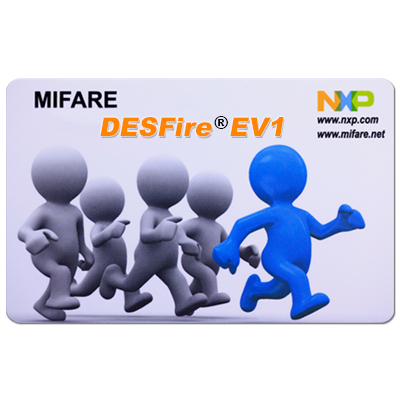

| Tag supported | MIFARE 1K®, MIFARE 4K®, MIFARE Ultralight®, MIFARE Ultralight® C, NTAG203, DESFire®, DESFire® EV1, MIFARE Plus 2K/4K |
| Integrated Antenna | Yes (FPC Antenna) |
| Reader/Writer | Yes |
| Interface | UART, baud rate 9,600 ~ 115,200 bps |
| Supply voltage | 2.7 - 3.6 VDC |
| Operating distance | Up to 50mm, depending on tag |
| Operating temperature | -25 ºC ~ +55 ºC |
| Storage temperature | -40 ºC ~ +85 ºC |
| Dimension | Mainboard: 37.5 × 19.5 × 4 mm Antenna: 46.2 × 52.2 × 0.2 mm |
| Quantity | Unit Price (USD) |
| 1 - 9 | $26.00 |
| 10 - 99 | $24.00 |
| 100 - 499 | $22.50 |
| 500 - 999 | $21.00 |
| > 1,000 | $19.50 |
